Fiber Optic Patch Cord & Pigtail

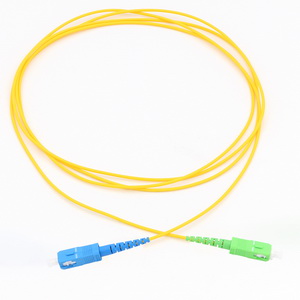

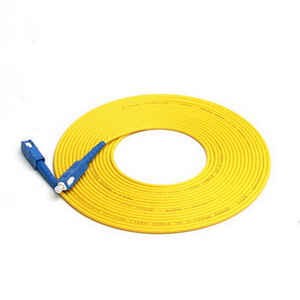

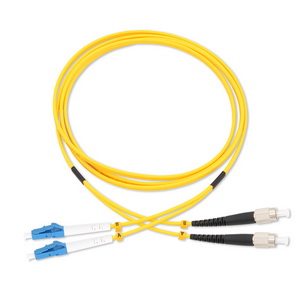

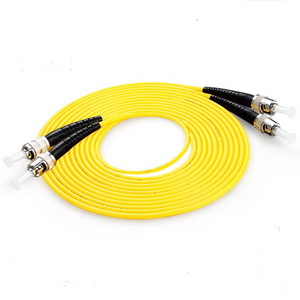

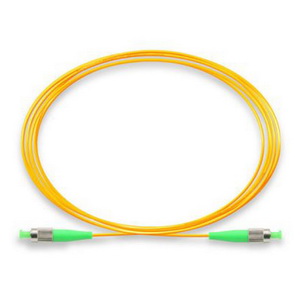

Fiber optic patch cable, often called fiber optic patch cord or fiber jumper cable, fiber optic patch cords are the simplest fiber optic elements, consisting of short length of optical fiber with a connector on either end.
Features:
• High quality zirconia ferrules.
• Good repeatability and interchangeability.
• LC,SC,ST,FC connectors are available.
• Printing and label can be customized.
• OS2,OM5,OM4,OM3,OM2,OM1 are available.
Mechinacal Specification:
|
Physical Characteristic |
Description |
|
Connector Types End A |
SC/LC/FC/ST |
|
Connector Types End B |
SC/LC/FC/ST |
|
Polish Type |
SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC MMF:UPC-UPC |
|
Connector Ferrule |
Zirconia Ceramic |
|
Cable Outside Diameter |
Duplex:2.0/3.0mm Simplex:0.9/2.0/3.0mm |
|
Mechanical Characteristic |
Description |
|
Fiber Type |
SM/OM5/OM4/OM3/OM2/OM1 |
|
Fiber Count |
Duplex/Simplex |
|
Cable Jacket |
PVC/LSZH |
|
Optical Characteristic |
Description |
|
Insertion Loss (Typical) |
SMF UPC:≤0.2db SMF APC:≤0.3db MMF UPC:≤0.3db |
|
Return Loss |
SMF UPC:≥50db SMF APC:≥60db MMF UPC:≥35db |
