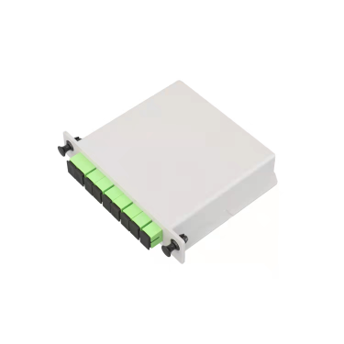

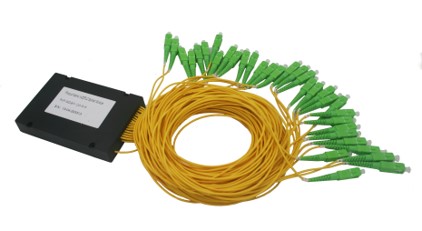

PLC planar waveguide type optical splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on a quartz substrate. Like a coaxial cable transmission system, an optical network system also needs to couple, branch, and distribute optical signals. Optical splitters are required to achieve this. It is one of the most important passive components in optical fiber links. It is an optical fiber junction device with multiple inputs and multiple outputs. It is especially suitable for passive optical networks (EPON, GPON, BPON, etc.) connect the central office and terminal equipment and realize the branching of optical signals.
Features
1.Low Insertion Loss. 2.High Return Loss. 3.Low PDL. 4.Uniform Power Splitting.
Technical Specification
|
1×N PLC Splitter |
|||||||
|
Type |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
|
Fiber Type |
G657A1 or customer specified |
||||||
|
Operating Wavelength(nm) |
1260 ~1650 nm |
||||||
|
Insertion Loss(dB) |
Max(w/connector) |
4.2 |
7.5 |
11 |
14 |
17.4 |
20.5 |
|
Uniformity Loss(dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
1.8 |
|
PolariationDependent Loss(dB) |
Max |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.5 |
|
Return Loss (dB) |
UPC≥50 APC≥55 |
||||||
|
Operating Temperature (°C) |
-40 to +85 |
||||||
