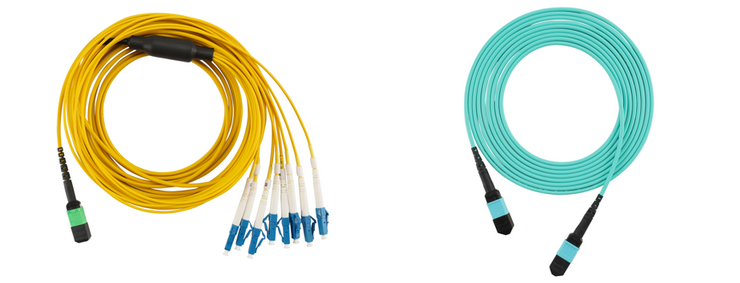

MPO is conducive to the rapid deployment of data centers and fiber infrastructure environment. Cross link between MDA/HDA and EDA module box or fan out cable. Its efficient plug and play architecture greatly reduces the installation and maintenance costs.
Features
1.OS2, OM3, OM4, OM5 available. 2.Allow easy migration from 10GbE to 40GbE or 100GbE. 3.Pulling eyes are provided as an option to protect the fiber ends during installation. 4.Supply 8 to 144 core cable connecting ,adopts 4/8/12/24 core MPO connector,miniaturization to minimize the failure rate and reduce the cabling space.
Technical Specification
MPO/MTP Pre termination optic cable
|
Item |
Multi Mode（PC） |
Single Mode（APC） |
||
|
Insert Loss（IL） |
Standard Loss |
Low Loss |
Standard Loss |
Loss Loss |
|
≤0.5dB |
≤0.3dB |
≤0.7dB |
≤0.35dB |
|
|
Return Loss（RL） |
≤20dB |
≤55dB |
||
|
Working Temperature（℃） |
-40~+85 |
|||
|
Working Wavelength |
850 |
1310 |
||
MPO/MTP Pre termination branch optica cable（Trunk）
|
Cable Type |
Max Insert Loss（dB） MPO LC/SC/FC/ST |
Max Return Loss（dB） MPO LC/SC/FC/ST |
||
|
OS2 SM9/125 |
0.6 |
0.3 |
≤-60（APC） ≤-50（PC） |
50 |
|
OM3 50/125 |
0.5 |
0.3 |
20 |
30 |
|
OM4 50/125 |
0.5 |
0.3 |
20 |
30 |
|
OM1 62.5/125 |
0.5 |
0.3 |
20 |
30 |
|
OM2 50/125 |
0.5 |
0.3 |
20 |
30 |
